Apidae Narrow M12 & Imaging Modules

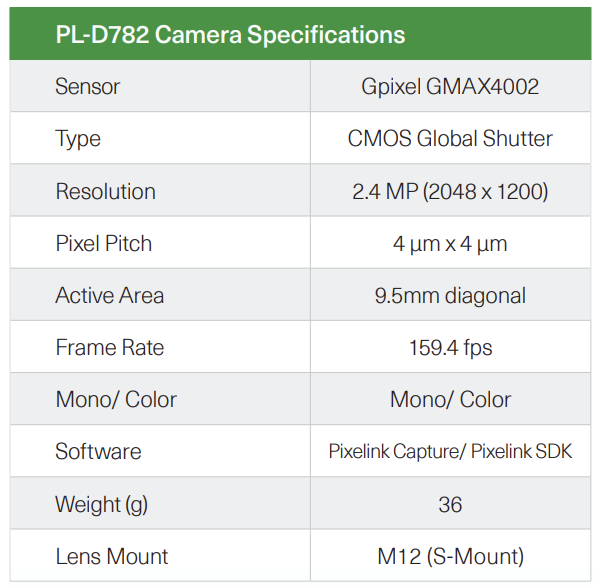

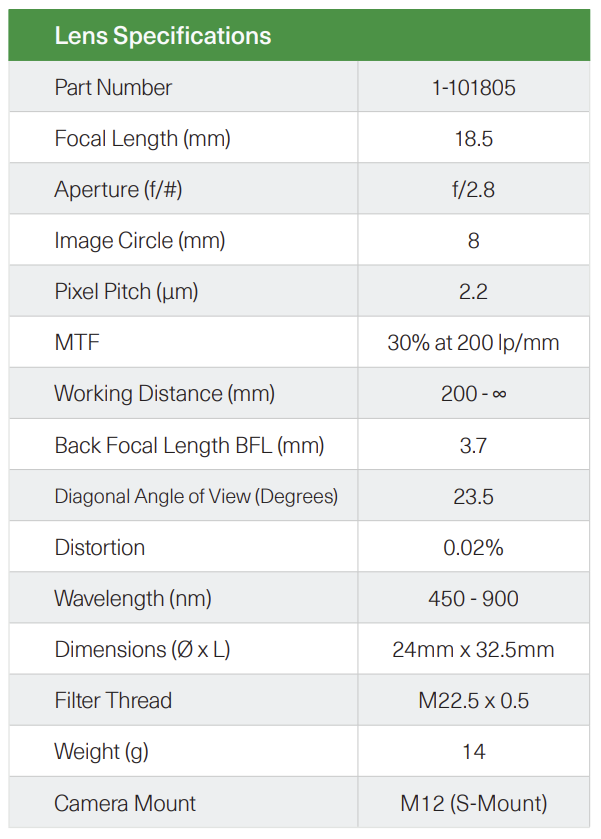

The compact and lightweight Navitar Apidae Lens is part of the high resolution 4K HDR product line developed for demanding imaging applications. Available as a lens only solution, integrated with a Pixelink Camera, or actively aligned to custom sensor technology, these imaging modules are the ideal solution for low SWAP applications.
Key Features
- Ultra-Low Stray Light & Secondary Reflections
- Produced with advanced multilayer anti-reflection coatings, optional infrared rejection filters and low internal reflectance mechanics to reduce veiling glare, flare, and ghost artifacts.
- Ruggedized Opto-Mechanics
- All glass and metal construction, combined with a unique mechanical design to withstand shock and vibration ensures durability in challenging environments. IP67 sealing and hydrophobic coating options available to further improve performance.
- Active Sensor Alignment Ready
- Customization options to support high volume automated lens to sensor active alignment. Ensures accurate, cost-effective production of high resolution, precision camera modules for OEM integration.
- Precision Athermalization
- Engineered for challenging environments across extreme temperature ranges. Lens maintains consistent focus and optical alignment without the need for refocusing making it ideal for mission critical applications
